Side Access Vee-Bank

Product Overview

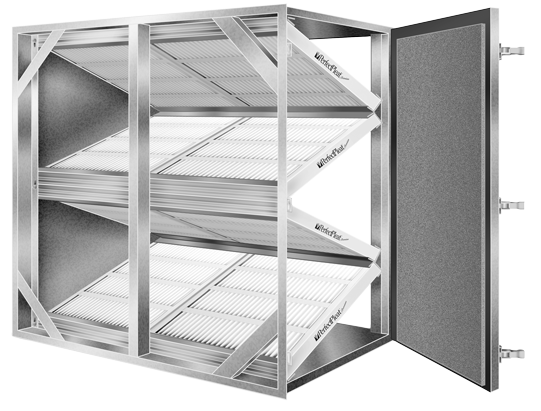

The Side Access Vee-Bank filter housing is engineered for use with air handling units or other side access equipment. It offers the convenience of servicing the filter from outside the air duct and is especially suited for installations involving limited headroom.

The Side Access Vee-Bank is a general purpose filter housing that provides mechanical strength, ease of use and economy. The Side Access Vee-Bank housing is used when only prefilters are required and you need to double your capacity. It utilizes 1" wide turned out flanges, welded construction, vertical supports and angle braces. Gasket sealed access doors are hinged and have over-center draw-type plated latches.

The Vee-Bank housing is designed to operate at up to 6” w.g. negative or positive pressure. Optional high pressure construction is available for service up to 10" w.g. It is offered in 96 sizes, spanning heights from nominal 1' through 8', and widths from nominal 1' through 12'. Housing depth is 30 inches.
