Product Overview

  • Built to withstand more difficult applications where higher efficiency and longer life are critical
  • Self-supporting DurFlex® media made from virgin fiber; no wire support needed; the same media as our standard PerfectPleat filters

Typical Applications

  • Commercial Buildings
  • Food and Beverage
  • Healthcare
  • Hospitality
  • Microelectronics
  • Schools and Universities
  • Museums & Historic Storage
  • Pharmaceutical
Efficiency
  • MERV 8
Filter Depth
  • 2"
Media Type
  • Synthetic
Frame Material
  • Beverage Board
Special Size Available
  • Yes
Antimicrobial Available
  • No
Max Operating Temperature
  • 200˚F (93˚C)

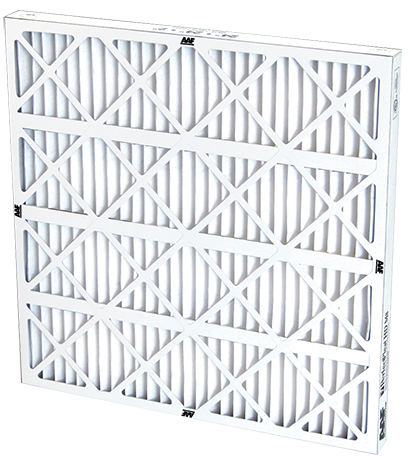

Using AAF's patented PerfectPleat as a base, our engineers developed the PerfectPleat HD M8 by incorporating maximum structural reinforcement into PerfectPleat's already extremely durable construction. HD M8, rated MERV 8, relys on mechanical efficiency rather than electret charged technology.

The PerfectPleat HD M8 filter is not intended for standard applications, with normal variations in temperature or airflow. PerfectPleat filters can handle those conditions. The PerfectPleat HD M8 filter is the choice when an application routinely challenges fitlers with very low temperature (down to -40 degrees F/-40 degrees C) and/or high turbulence. If your application has these characteristics, the PerfectPleat HD M8 filter is the ideal choice.


For sizes and performance data:

Download Full Brochure
