Product Overview

  • High efficiency - MERV 11
  • Premium performance and construction
  • Synthetic, electrostatically charged media with high dust holding capacity
  • Excellent as a final filter or prefilter

Typical Applications

  • Commercial Buildings
  • Food and Beverage
  • Healthcare
  • Hospitality
  • Microelectronics
  • Schools and Universities
Efficiency
  • MERV 11
Filter Depth
  • 1"
  • 2"
  • 4"
Media Type
  • Synthetic
Frame Material
  • Beverage Board
Special Size Available
  • Yes
Antimicrobial Available
  • No
Max Operating Temperature
  • 200˚F (93˚C)

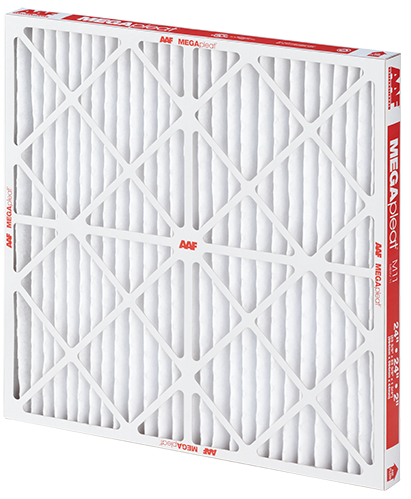

The MEGApleat M11’s synthetic, electrostatically charged media has a high initial efficiency and is particularly effective in capturing finer particulate.

The media pack is bonded to a unitized, die-cut box frame at all points of contact, preventing dirty air bypass and promoting even airflow. The MEGApleat 11 also has a heavy-duty, expanded metal support grid to increase rigidity and help maintain proper pleat spacing. This ensures maximum efficiency, low resistance, and maximizes dust holding capacity with no racking or vibration of the pleats under normal airflow.

The MEGApleat 11 filter will work in any application where an extended surface pleated panel filter is currently in service, either as a final filter or prefilter. It is particularly suited to applications where high initial efficiency and lower initial resistance are important.

For sizes and performance data:

Download Full Brochure
