Product Overview

  • Rated at 500oF
  • Ultra-fine high loft microglass media
  • Aluminized steel U-channel frame
  • Available in 2″ and 4″ depths
  • MERV 8

Typical Applications

  • Commercial Buildings
  • Food and Beverage
  • Schools and Universities
Efficiency
  • MERV 8
Filter Depth
  • 2"
  • 4"
Media Type
  • Synthetic
Frame Material
  • Beverage Board
Special Size Available
  • Yes
Antimicrobial Available
  • No
Max Operating Temperature
  • 500˚F (260˚C)

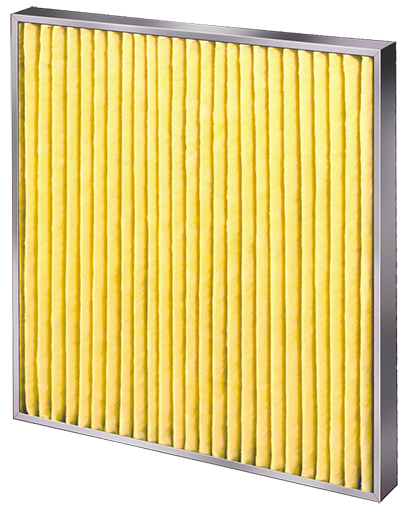

The AmAir HT filter is designed for applications with continuous operating temperatures up to 500˚F (260˚C). The frame is an aluminized steel U-channel, with the media pack bonded to the inside on all four edges. An expanded aluminized steel faceguard is spot welded inside the frame on the air-leaving side to retain the media pack at elevated temperatures. AmAir HT filters are made with MERV 8 ultra-fine high loft microglass media, thereby increasing its dust holding capacity.
