Product Overview

  • Individually tested for certified performance
  • Reduces operating costs with lowest possible pressure drop from microglass media
  • Gasket seal, gel seal and knife edge designs available
  • Available with media ribbon or hot melt separators
  • Available in a range of efficiencies
  • Lightweight and compact

Typical Applications

  • Healthcare
  • Microelectronics
  • Pharmaceutical
Efficiency
  • HEPA
  • ULPA
Media Type
  • Fiberglass
Frame Material
  • Aluminum
Separator Style
  • Ribbon Hot Melt
Special Size Available
  • Yes
Antimicrobial Available
  • No
Max Operating Temperature
  • 150˚F (66˚C)
Filter Depth
  • Various

Energy Saving Design

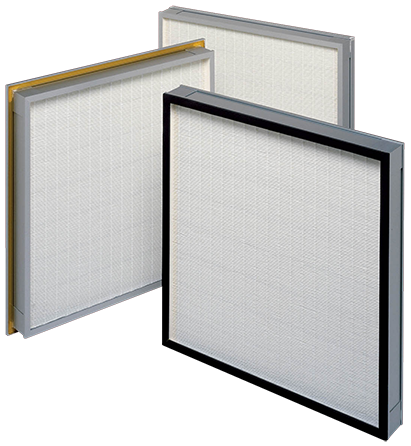

AAF's mini-pleat AstroCel® II filters are ideal for demanding operating conditions in critical applications. A longer service life and lower energy consumption means fewer change-outs and lower operating costs.

Unique construction

Astrocel II filters are available with media ribbon or hot melt separators to meet the requirements of all mini-pleat applications. Pack depths are available between 2“– 4” to optimize energy savings by minimizing total ownership costs.

Range of Efficiencies

Efficiencies from 99.99% on 0.3 micrometer to 99.9995% on 0.1 – 0.2 micrometer particles. Custom efficiencies are available.
