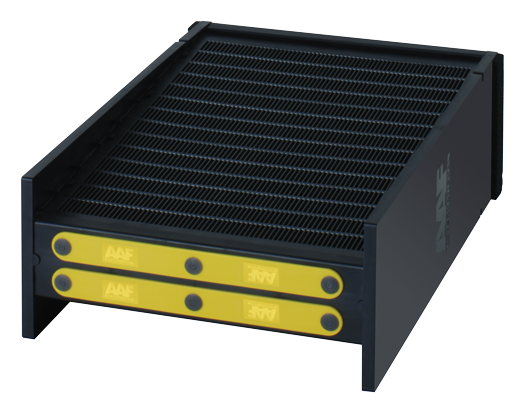

SAAF™ Cassette Medium Duty

1-inch V-bank, 18-inch Deep Gas Filtration Cassette

Product Overview

More energy-efficient than any other competitive cassette
Designed for full media utilization
Improves fit and sealing integrity in any cassette holding system
Glue-free design eliminates off-gassing, bypass and leakage
Filled cassettes are UL Classified
Multiple patents pending

Typical Applications

Commercial Buildings
Data Centers
Food and Beverage
Healthcare
Hospitality
Microelectronics
Museums & Historic Storage
Pulp & Paper
Refineries
Schools and Universities
Waste Management
Waste Water Treatment

Filter Depth	18
Media Type	Chemical
Frame Material	High impact polystyrene HIPS
Special Size Available	No
Antimicrobial Available	No
Single Header	No

Energy-Efficient

The optimized apertures of the SAAF-T-screens allow for better energy efficiency through improved aerodynamics and reduced pressure drop.

High-Performance Media Utilization

The patent-pending enhanced media utilization design eliminates the “nose cavity" typically created by legacy cassettes. Nose cavities “cocoon" up to 30% of the chemical media, keeping it isolated from airflow contact at all times during the life of the cassette. SAAF Cassettes are the only cassettes that utilize 92% of all chemical media in the cassette - outperforming legacy cassettes by 25%.

Robust Design

Patent-pending design provides a high-pressure, no-glue snap assembly. This rigid construction excludes harmful glues, solvents, or MEK’s from the manufacturing process, allowing for better structural integrity and eliminating gas by-pass problems.

Excellent Sealing

The design of the SAAF-T-Butterfly Seal and SAAF-T-Groove provide near absolute sealing by using a compression fit to eliminate by-pass. Patent-pending plastic rivets secure the solid fill caps at multiple points, protecting against bursts or leaks in normal usage. Older legacy cassettes use stickers, labels, or low friction end caps that have high instances of failure and chemical media spillage. Smooth mating end panels with no penetrations or outward-turned flanges allow excellent cassette-to-cassette sealing.
