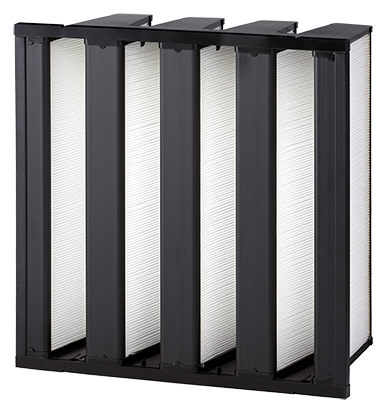

VariCel^® VXLS

8-Panel High-Efficiency Supported Pleat Filter

Product Overview

Delivers superior air quality in difficult operating conditions with turbulent airflow, repeated fan shut-down, or high humidity.
Available in MERV 15, MERV 13, and MERV 11 efficiencies
Lightweight and easy to install
MERV 13 and higher meet LEED^® Project Certification efficiency requirements

Typical Applications

Commercial Buildings
Healthcare
Schools and Universities

Efficiency	MERV 15 MERV 13 MERV 11
Filter Depth	12"
Media Type	Synthetic
Frame Material	Plastic
Separator Style	Gluebead
Special Size Available	No
Antimicrobial Available	No
Single Header	Yes
Max Operating Temperature	176˚F (80˚C)

Construction

The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. Constructed of plastic, the VariCel VXLS filter is fully incinerable and rust free. The media packs are sealed to the frame with polyurethane sealant.

Durable Self-Supported Media

VariCel VXLS employs a highly uniform and durable media that helps resist tearing, abrasion, and handling damage. The gradient density construction offers low resistance to air airflow and higher dust holding capacity than competing grades of synthetic media. The media is heat-set during the pleating process, resulting in V-shaped pleats in a self-supported media pack.
