Product Overview

  • Extremely low pressure drop with MERV 8 efficiency
  • High dust holding capacity for long service life
  • Self-sealing design and tapered pockets provide fast, easy installation
  • Requires no clips or latches
  • Moisture-resistant polyester media
  • Available with header

Typical Applications

  • Surface Finishing
Efficiency
  • MERV 8
Filter Depth
  • 10"
  • 15"
  • 20"
Media Type
  • Synthetic
Special Size Available
  • No
Single Header
  • Yes
Max Operating Temperature
  • 150˚F (66˚C)

Wide Range of Applications

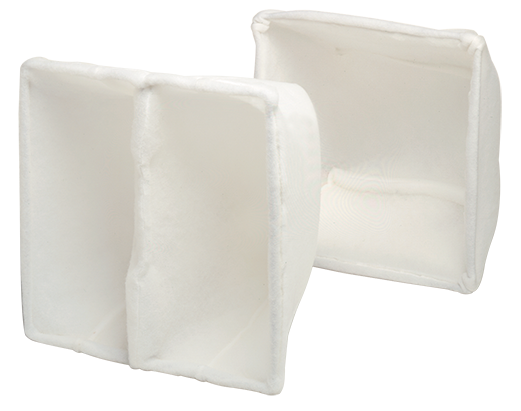

The AmerSeal Cube Filter is ideal for a wide variety of applications with high dust-loading conditions. These filters function excellently as prefilters, or as single-stage filters in demanding environments such as paint booths. AmerSeal Cubes are available in 10", 15" and 20" depths. They have an optional 13⁄16" thick U-channel header for side access installations, or other systems where a header is required.

Innovative Self-Sealing Design

AmerSeal Cube filters employ a triple-density, single-piece media designed to catch and hold more particulate. The moisture-resistant, polyester media consists of coarse 40 denier fibers on the upstream layer, followed by an intermediate layer of 15 denier fibers, and a final layer of fine 6 denier fibers coated with a non-drying, pressure-sensitive adhesive. The media is sonically sealed around an internal wire support frame, forming a built-in gasket that secures the filter in place and seals it to prevent bypass. With tapered pockets and no clips or latches required, the AmerSeal Cube Filter’s self-sealing design provides the fastest, easiest installation of any extended surface filter on the market.

For sizes and performance data:

Download Full Brochure
