Product Overview

  • Expanded metal pleat support grid
  • High loft media increases dust holding capacity
  • Excellent primary filter to prevent dust build-up on heating and cooling coils, fans and ductwork
  • Excellent prefilter for higher efficiency filters
  • Directly interchangeable with disposable panel filters, media pads in metal frames, or permanent filters used in built-up filter banks and side access systems; no modifications are necessary to frames or latches
  • 4” filters have pleat stabilizers to ensure uniform spacing and increased rigidity
  • MERV 7

Typical Applications

  • Commercial Buildings
  • Food and Beverage
  • Hospitality
  • Healthcare
  • Schools and Universities
  • Microelectronics
  • Museums & Historic Storage
  • Pharmaceutical
Filter Depth
  • 1"
  • 2"
  • 4"
Efficiency
  • MERV 7
Media Type
  • Cotton/Poly
Frame Material
  • Beverage Board
Max Operating Temperature
  • 200˚F (93˚C)
Antimicrobial Available
  • No
Single Header
  • No

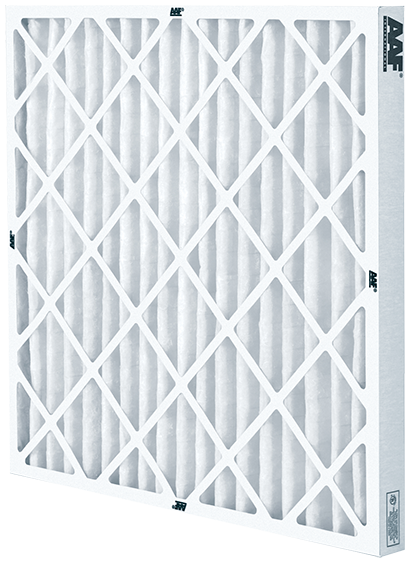

AmAir® 300X filters are constructed with AAF’s totally unitized, double-wall, die-cut box, beverage board frame. The media pack is bonded inside the frame at all points of contact. AmAir® 300X filters are built rugged for durability and reliability under tough service conditions. The AmAir® 300X filter is a MERV 7 in accordance with ASHRAE Standard 52.2.

Superior Strength

AmAir® 300X filters are extremely strong and durable, with all components rigidly bonded into a totally unitized construction. The filters will not rack or deteriorate under normal operating conditions, including high-moisture applications. An expanded metal grid laminated to the air-leaving side of the media creates more consistent pleat shape and maintains uniform pleat spacing. Expanded metal also increases the stability of the pleat pack, reducing media flutter during operation. The media pack support retainers, which are an integral part of the frame, are bonded to the pleats on both the air-entering and air-leaving sides. This increases rigidity and also helps maintain proper spacing between pleats for maximum dust holding capacity, while minimizing resistance.

For sizes and performance data:
