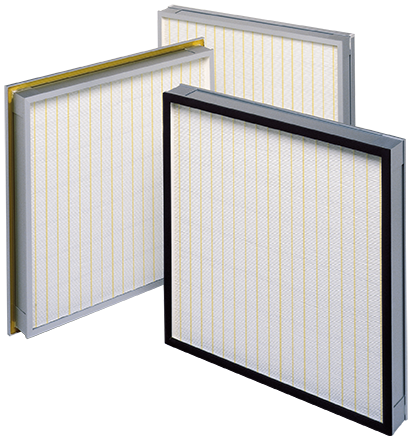

MEGAcel^®

Energy Conservation

The AAF ePTFE pleated pack resistance is a minimum of 30% lower than conventional micro fiberglass media, a factor contributing to a great reduction in fan energy consumption. AAF’s pleating method, which uses intermittent polyamide separators, allows more open media area, optimizing pleat pack resistance.

Perfect Filter Media

Compared with micro fiberglass media, AAF’s ePTFE media provides superior benefits, including inert chemical properties, more uniform fiber distribution, and smaller fiber diameters and pore size. This reduces resistance, creating higher filtration performance to achieve substantial energy savings.

Sturdy Construction

Tooling environments often produce harmful and corrosive by-products. The MEGAcel filter is extremely resistant to these harsh conditions, and also offers superior efficiency and pressure drop characteristics. Manufactured with high quality ePTFE media, the MEGAcel filter is water-resistant and meets the requirements of UL900. The media pack is permanently attached to an anodized extruded aluminum frame with a urethane adhesive.

Chemical Advantages of AAF ePTFE Media

Negligible Off-Gassing

AAF ePTFE media has smaller pore size and fiber diameter than micro fiberglass. These characteristics significantly reduce the levels of off-gassing impurities typical to micro fiberglass (which include boron, sodium, potassium, and silicon) to below detectable limits.

High Corrosion Resistance

AAF ePTFE media has been proven to be resistant in highly corrosive environments, including alkaline, acid, and organic substances. All of these environments can be found in semiconductor manufacturing processes.

Superior Water Resistance

AAF ePTFE media provides superior water resistance in comparison with micro fiberglass and low boron micro fiberglass media.
