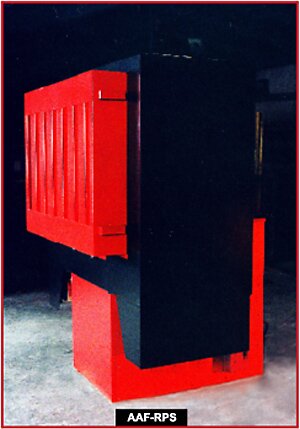

 AAF-RPS
Reverse Pulse Extractor (RP) with Side Draft Collector (S)
for OILY & DRY PARTICULATE FUME, SMOKE & DUST
STANDARD FEATURES
-
The extractor used on the AAF-RPS is nationally listed by ETL, an NRTL to exacting standards set by UL, CSA and OSHA requirements of 29 CFR 1910
-
PATENT PENDING
-

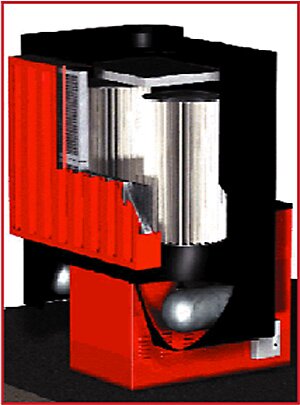

Reverse Pulse Self-Cleaning Filters
-
Powerful 5Hp fan 5,800 CFM
-
Compact Size at 76"H x 43"L x 58"W
-
Modular & Flexible Small - Lightweight
-
Affordable! Lowest dollar per CFM unit that really works!
-
Side Inlet pulls smoke away!
-
Easy Filter and Dump Bin Access
-
Uses Commonly Available Filters
SPECIFICATIONS
-
5 Hp, 3,450 RPM, 208-230/460/575/3/60
-
15" airfoil non-overloading high-efficiency spark resistant fan wheel
-
894 lbs.
-

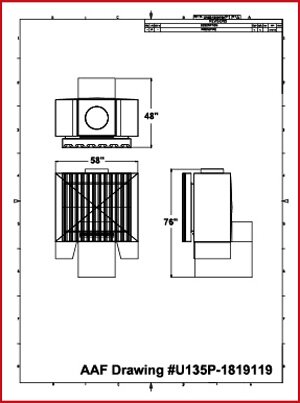

76" Height x 48" Length x 58" Width
-
Pleated cylindrical filter cartridge
-
Built-in acoustical lining
-
5,800 CFM Free Blowing
