AAF-OSS
Oily Smoke Extractor (OS) with Side Draft Collector (S)

for OILY SMOKE, FUMES & DUST

The Collector of Choice for Extracting Dirty Oily Smoke

STANDARD FEATURES

• The AAF-OSS Oily Smoke Side Draft Extractor can also be used on grinding dust. An excellent application for this product is on oily smoke and fume extraction when side draft is required.
• 4,000 CFM Free Blowing
• Less than 78 dBA
• Easy Filter Change
• Cyclonic Airflow Resists Filter Fires
• Uses Commonly Available Filters
• Does Not Reverse Pulse
• Weighs 562 lbs.
• Side Draft mounts in three positions

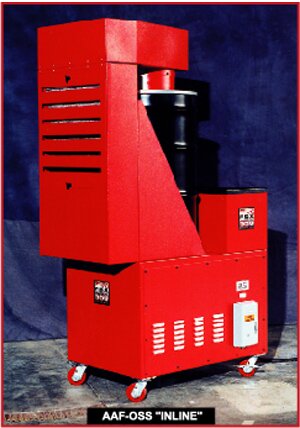

• If collector is "INLINE": 76"H x 49"L x 26"W
• If collector is "OVER the SIDE": 76"H x 40"L x 35"W
