 Pulse-Jet Cylindrical Cartridge Dust Collector
The AAF OptiFlo cartridge collector is the optimum solution to a variety of in-plant air pollution problems. The compact modules help conserve valuable space, and can be interconnected to accommodate the largest air cleaning task. OptiFlo collectors may be tailored to specific application requirements with a wide selection of cartridge types, options, and accessories.
Ease of Maintenance
The OptiFlo cartridge collector is designed for filter replacement from outside of the collector. Since it is not necessary to enter the collector to change the cartridge filters, maintenance personnel have limited exposure to dust. Cartridge filters are easily removed and installed by hand, no special tools are required.
Rugged Construction
The use of ASME certified welders and ASTM certified steel ensures that every OptiFlo product is built to last. A seismic Zone 4 rating is standard. Stainless steel construction is available in 304 or 316L. NEMA 4 controls are standard, with all others available as options.
High Fractional Efficiency
Efficient on even submicron, health damaging, fine particulates, the OptiFlo dust collector was tested by an independent test lab to meet the highest levels of cleaning efficiency. Certified to exceed NIOSH and OSHA codes for recirculation of plant air, the OptiFlo dust collector, provides 99.999% average efficiency on submicron particles with low energy and operating cost.

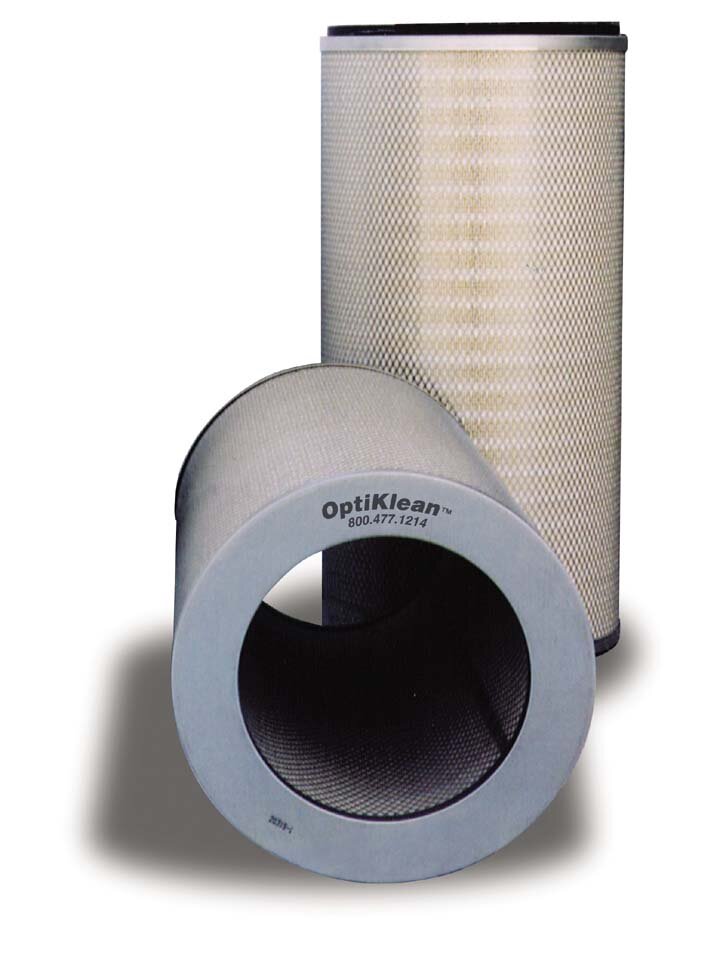

 OptiKleanTM Cartridge Filters
OptiFlo filters are made of a proprietary durable polyester reinforced media specifically constructed to withstand the rigors of pulse cleaning. The media has exceptional burst strength for unsurpassed resistance to abrasion and rupture. Scientifically developed to collect submicron dust particles, OptiKlean filters are engineered for energy-efficient continuous operation in harsh industrial environments with excellent dust release. Click on OptiKlean to learn about our proprietary high performance cartridge filters.
Typical OptiFlo Applications
Pharmaceutical (pill coating and packaging)
Weld Fume
Laser Cutting
Metallizing (Arc, Plasma, HVOF)
Paint Powder and Pigment
Metal Grinding/Polishing
Plastic & Rubber (Molding & Grinding)
Woodworking
Cereals, Candy, Flour, Food Mixes, and Starches
Cement, Concrete, Pottery, and Rock Dust
Motor and Electric Room Ventilation
OptiFlo - Details
|
