OptiFlo ® Cartridge Filter Dust Collectors
|
|
Pulse-Jet Cylindrical Cartridge Dust Collector
The AAF OptiFlo cartridge filter collector is the solution to your in-plant air pollution problems. The OptiFlo dust collector provides high efficiency air cleaning on the most difficult dry dust applications. Precisely engineered to work with the OptiFlo dust collector, OptiKlean cartridge filters are part of a total system approach to solving industrial air quality problems. This total system approach ensures OptiFlo dust collectors meet the demands of more stringent regulations, allowing the cleaned air to be recirculated to reduce exhaust and energy costs.
View Details
|
|
|
The AAF DustCatcher offers all of the advantages of a tough industrial quality high efficiency cartridge dust collector in a small, attractive package. This fully self contained dust collector provides high efficiency air cleaning on the most difficult dry dust applications. It is offered in three sizes for cleaning air flow volumes up to 2,000 cfm. The self contained fan has been designed to provide stable airflow against high static pressures. The DustCatcher ships complete with factory installed fan and controls and is simple to install and maintain. It is a self cleaning dust collector and is fully automatic.
View Details
|
|
|

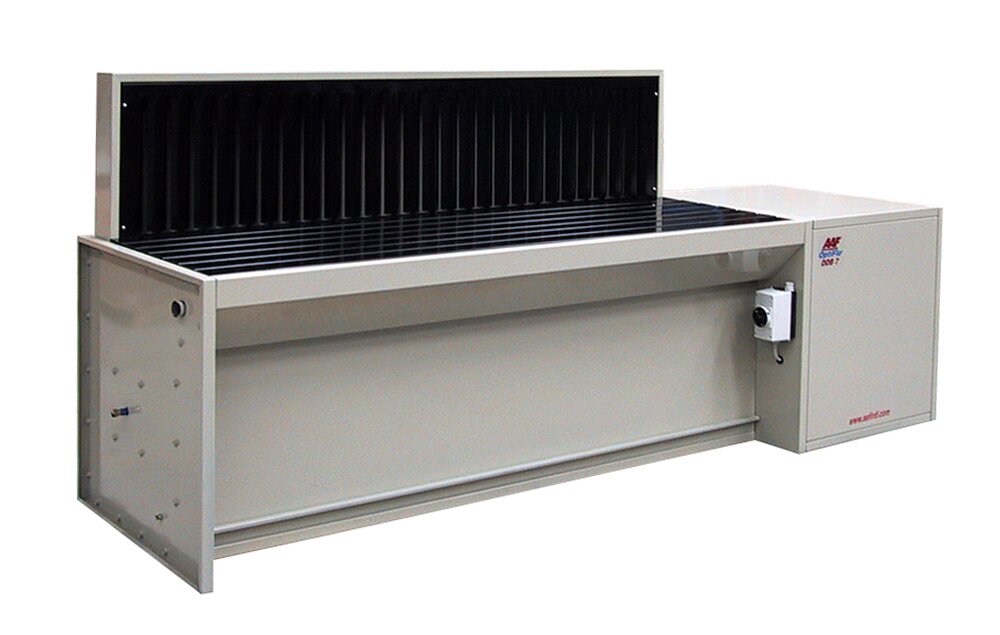

OptiFlo® Downdraft Bench
The AAF OptiFlo Downdraft Bench (Model DDB) is the ideal air cleaning solution for those workbench tasks that produce airborne dust, particles, and fume. The OptiFlo DDB is ideal for collecting dust produced by cutting, finishing, sanding, de-burring, grinding, buffing, polishing, soldering, and light welding. The OptiFlo DDB offers a choice of two large work surfaces. The Model DDB5 has an actual work surface that measures 29 inches deep by 5 feet wide, while the Model DDB7 is a generous 29 inches deep by 7 feet wide. The OptiFlo DDB can be used for single or multiple workstations. The work surface is ergonomically selected to be 31 inches above the floor and an indented front panel allows the user to sit or stand while working at the work-bench. An optional ventilated back wall is available for the DDB5 and DDB7 (Shown).
View Details
|
|
|
OptiFlo® HP Series
The OptiFlo HP dust collector is recommended for use as a product receiver in high pressure, high dust load applications such as high pressure product conveying. The OptiFlo HP will handle vacuum pressures up to 8.67 inches of mercury (4.259 psig or 118.11 inches H2O). The OptiFlo HP can be used for filtering fumes and dusts in mechanical, chemical or pharmaceutical applications. Contaminated air enters at the bottom of the unit and due to the rapid decrease in velocity and the first stage diffuser, the larger particles fall into the dust collection bin. The finer or lighter particles flow through the unit, where the cartridge filters are located, and are captured with 99.5% efficient cartridges. Pulsed cleaning is accomplished by diaphragm valves controlled by a choice of PLC or automatic timer. The OptiFlo HP is available in 12 sizes to accommodate airflows between 880 CFM and 12,000 CFM. View Details
|
|
|
OptiFlo® ECB
The AAF OptiFlo Environmental Control Booth (Model ECB) is the answer when a complete dust containment system is required quickly in the minimum amount of space and with the maximum amount of flexibility.
The OptiFlo ECB is constructed using standard modular sections. A booth can be erected using a minimum of two modules with a width of 6'-3-1/2" up to a maximum of six modules with a width of 18'-10-1/2". The booth fits within a headroom of 11'-5". Airflow ratings vary from 4,700 cfm to 14,100 cfm. The OptiFlo ECB includes a 72" deep sound reducing intake enclosure with 2" of foam sound insulation to channel the airflow and contain the generated dust.
View Details
|
|
