DuraCel XL

Barrier Filter Designed For machinery Intake Air Filtration

Interlocking Construction Built To Be Rugged
The DuraCel XL Barrier Filter is constructed of galvanized metal cell sides. Galvanized wire mesh faceguards are spot welded in place to the rigid header flanges on both the air entering and the air leaving sides.

DuraCel XL's unique mechanical interlocking construction eliminates rivets or nuts and bolts. This light-weight, galvanized metal housing protects the integrity of the media pack, even under the toughest operating conditions.

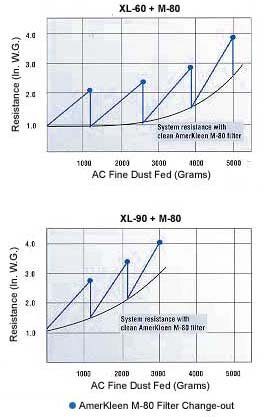

durachart.jpg (23788 bytes) DuraCel XL's unique mechanical interlocking construction eliminates rivets or nuts and bolts. This light-weight, galvanized metal housing protects the integrity of the media pack, even under the toughest operating conditions.

Features

  • Highest available dust holding capacity
  • Lower average operating pressure drop
  • Economical disposable AmerKleen M-80 prefilter
  • Fully integrated system
  • Interlocking construction
  • Integral flanged headers
  • Welded faceguards on air entering and air leaving sides
  • Water repellent media
  • Easy and less frequent filter replacement

Dual Density Media
DuraCel XL's media pack consists of high efficiency glass media. Our dual density design allows dirt particles to be collected throughout the entire depth of the filter, utilizing the full cleaning potential of the media.
