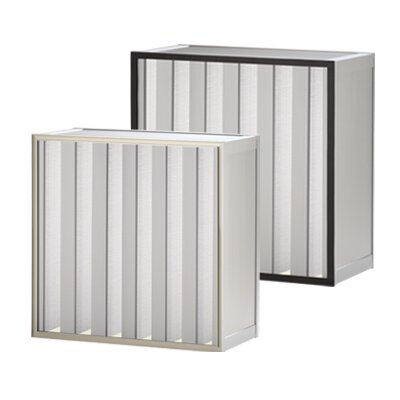

AstroCel III
Documents
Locate My Sales Rep
Summary
AAF's high capacity mini-pleat AstroCel® III filters are ideal for demanding operating conditions in critical applications. A longer service life and lower engery consumption means fewer changeouts and lower operating costs.

Multiple mini-pleat media packs, assembled into a series of V-banks, permit substantially more media to be contained in the filter — double the media typically found in HEPA filters - 430 square feet of media. Maximum effective media area provides greater airflow capacity, low resistance, high dust holding capacity, and unusually long service life. The V-bank configuration provides greater airflow capacity; rated 2400 CFM at 1 in. w.g.

AstroCel® III HEPA filters are ideal for applications operating with higher airflows, up to 600 FPM, and requiring ultra low pressure drop:
• Semiconductor and Electronics manufacturing
• Pharmaceutical processing
• Photo film manufacturing/processing
• Hospitals, Laboratories, and Optical facilities
• Food processing

Chemical resistant anodized aluminum frame provides superior strength. Available in gel seal and gasket seal designs.

Details
Efficiency: 99.99% on 0.3µm
Filter Type: HEPA
